The edge, solved
On rooftops and podiums, the boundary is everything. Rooftop Series is engineered and certified to meet the National Construction Code and the relevant Australian Standard requirements for edge protection and barriers — tailored to each project’s condition.
The planter is the barrier: engineered for the loads and height, fixed to the structure and signed off by a registered structural engineer. There’s no single fixed product — the compliance is designed to your project.
Configure it
Standard footprints as a starting point, then tailored to the roof in front of you.
Engineered for the roof
The engineering that lets a landscape sit safely on a roof.
Standard sizes

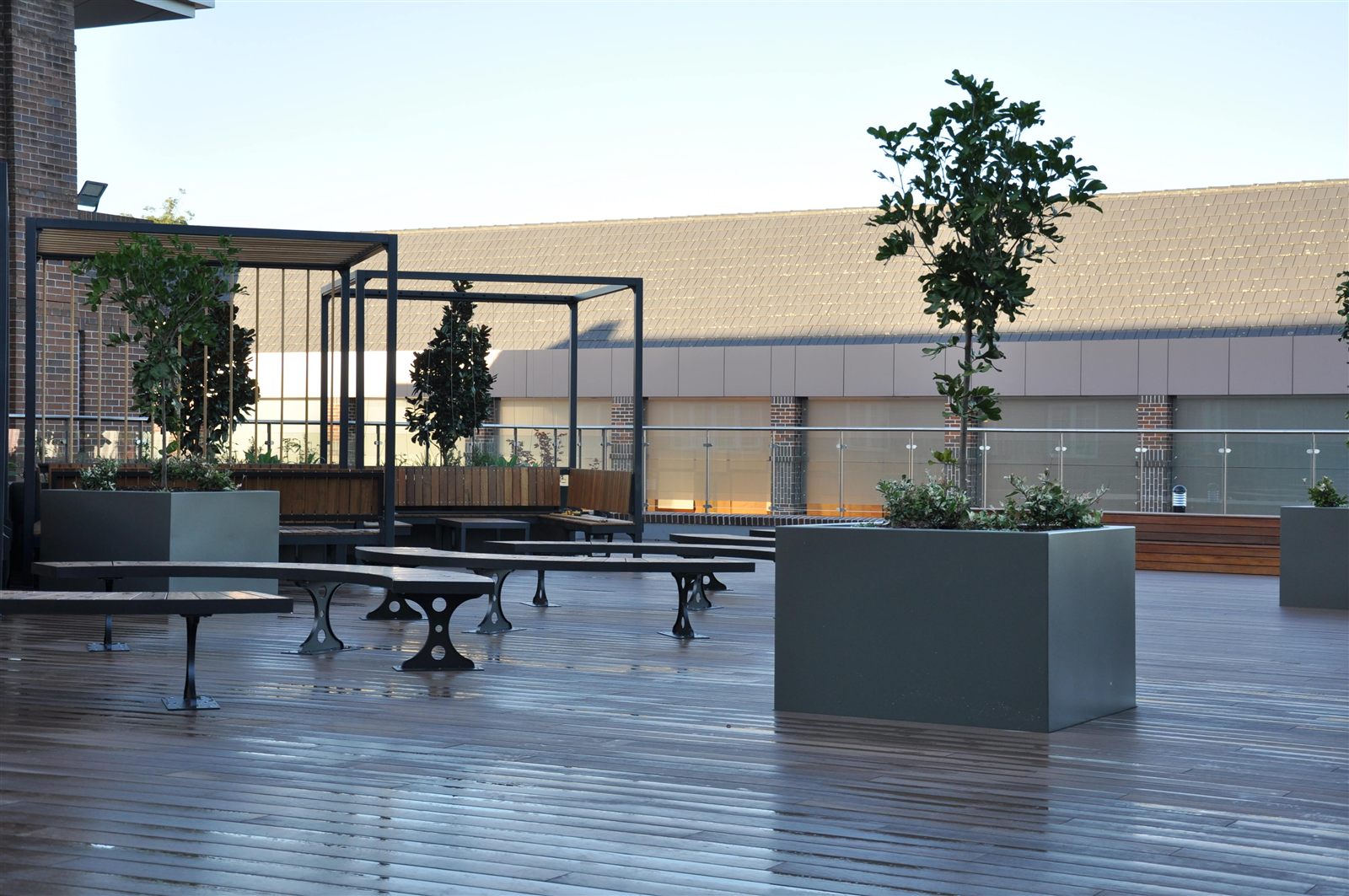

Built lightweight and levelled on adjustable feet for podium and roof loading. Rooftop planters are typically 800 or 1000 mm tall; heights run 400 · 600 · 800 · 900 · 1000 · 1050 mm — the taller options suit barrier and edge-protection use (see below). Available on every footprint. Dimensions in millimetres.
| Length (mm) | Available widths (mm) |
|---|---|
| 1200 | 400 · 500 · 600 · 750 · 900 |
| 1500 | 400 · 500 · 600 · 750 · 900 |
| 1800 | 400 · 500 · 600 · 750 · 900 |
| 2400 | 400 · 500 · 600 · 750 · 900 |
Every length available in all five widths. Longer runs made to order.
| Plan (mm) | Class |
|---|---|
| 800 × 800 | Standard |
| 1000 × 1000 | Standard |
| 1200 × 1200 | Standard |
| 1500 × 1500 | Large-format |
Square footprints share the same height range; 1500 mm square is large-format, made to order.

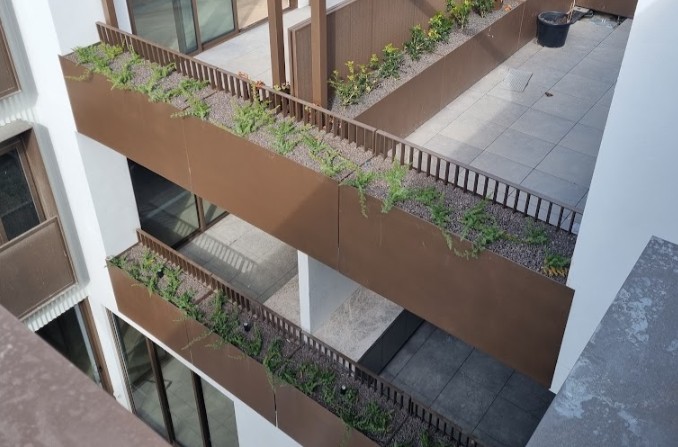

Barrier compliance — the non-climbable zone. Where a Rooftop Series planter also serves as edge protection or a barrier, the design must maintain a non-climbable zone from 0–760 mm — no climbable footholds within that band — and reach the required barrier height to meet the National Construction Code and AS 1170.1 — achieved with a tall planter, or a standard planter plus a balustrade extension (see below). POBOX engineers and certifies each barrier application per project, with the planter fixed to the structure to our details; a client-fitted planter is not automatically certified. How planters meet barrier compliance →
Off-ladder sizes, a heavier gauge, integrated seating or drainage, and Corten in place of aluminium are all made to order — engineered and certified per project. Need a size that isn’t here? Request a quote →
Compliance & fit
Both reach barrier height while the solid planter body forms the 0–760 mm non-climbable zone.
Both are engineered and certified per project, fixed to the structure to our details.
Rooftop modules connect end-to-end into one continuous set — as long as the edge or parapet needs. To fit an as-built length exactly, we combine standard modules with a single custom module sized to close the run.
Example — a 9.2 m parapet. Five standard 1500 mm modules (7.5 m) join to one custom 1700 mm module to land the run wall-to-wall. The standard modules keep it economical and quick to make; the single custom piece makes the precise fit.
Send the as-built dimensions and we’ll set out the module run for you. Request a quote →
Standard or bespoke
Either way it’s made and finished to your specification — and priced to suit, by combining our local and imported ranges into one seamless offer.
Proof

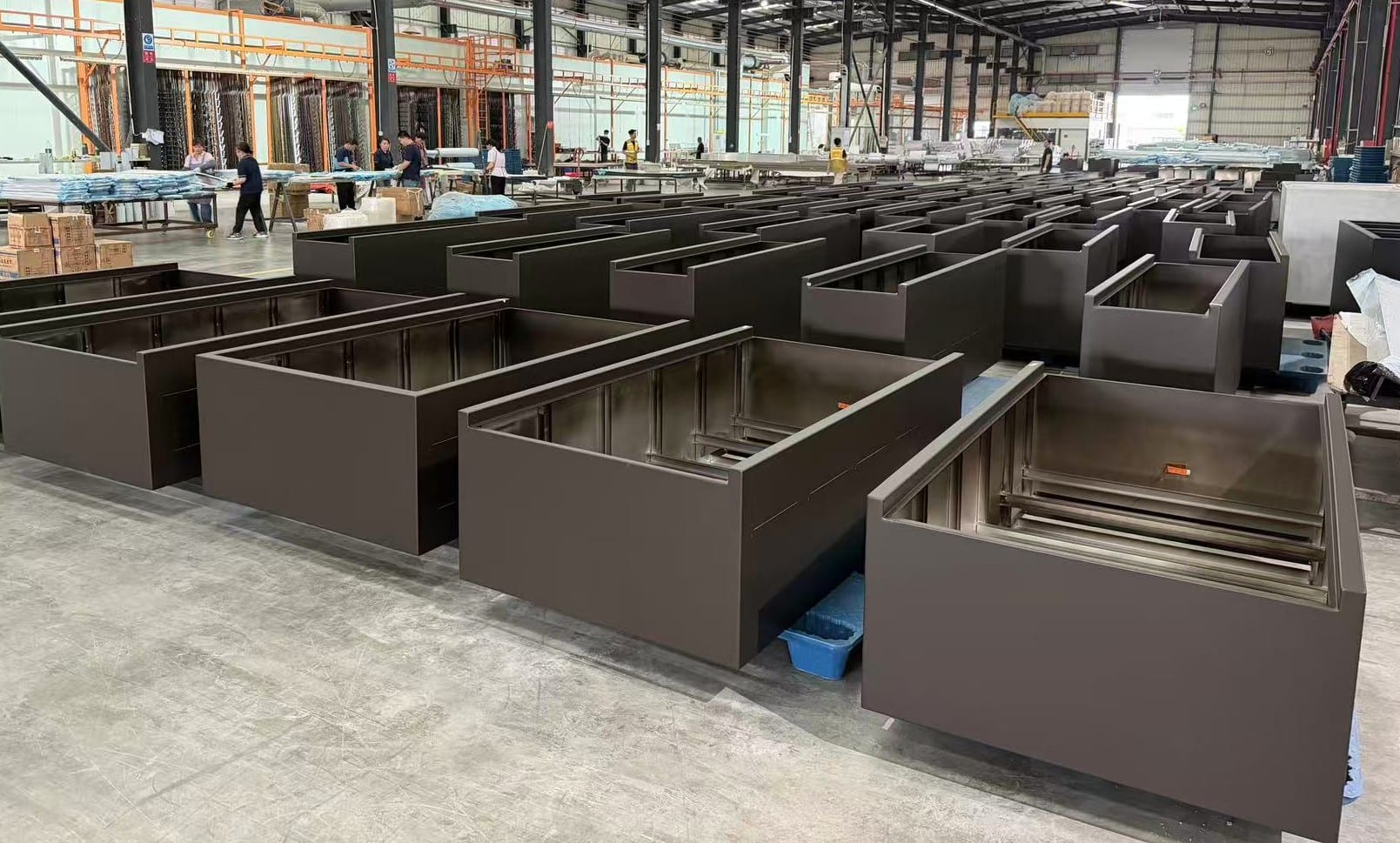

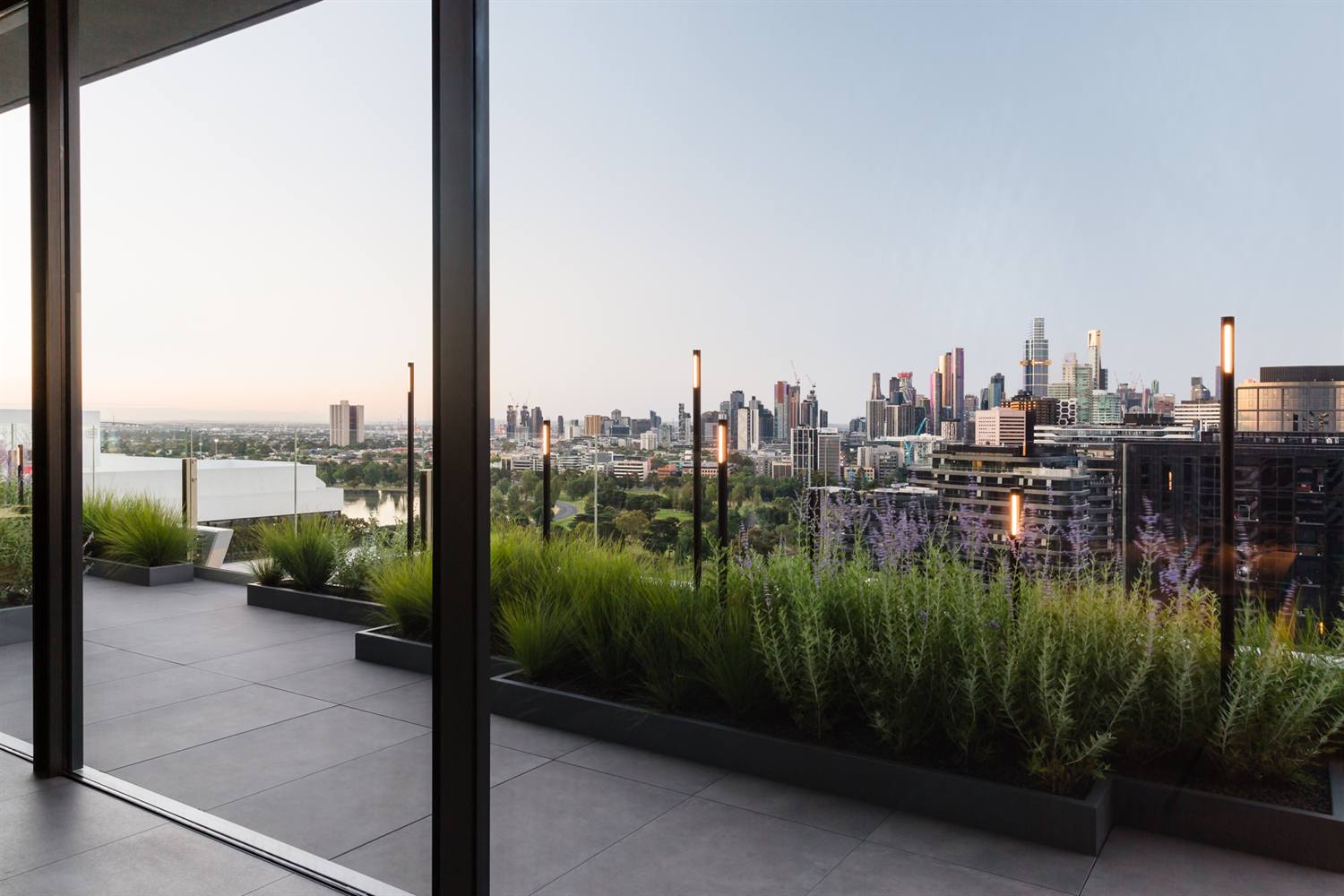

Rooftop and multi-residential projects across Victoria and New South Wales. We’ve previously supplied up to 550 planters on a single project — and our capacity is virtually unlimited.
For specifiers: spec sheets, CAD/DWG files on request, engineered and certified per project, and backed by our Ten-Year Limited Warranty.
Request a quote
The more you share, the faster we can tailor a specification and a price. No obligation.
Have drawings? Email them to sales@poboxdesigns.com.au and reference your enquiry.
Tell us the sizes, quantities and timeline and we’ll come back with a specification and a price — no obligation.
A real person replies within one business day.
Start your project
Send us the roof, the quantities and the program — we’ll tailor the specification, the compliance and the price to suit.
